WIOI-L-1-D-50-90



Product selector

Description

  • 24VDC±10% power supply
  • 2 x NC relay outputs 250VAC/2A
  • 2 x galvanic isolated analogue output 4 - 20mA
  • CANopen user interface
  • adjustable alarm points for HA and HHA (aw/ppm) via com.-
  • 4 digit indication display for aW/ppm
  • LED indication for H/HH-alarm
  • Push button function for H/HH alarm
  • Acoustic indication for H/HH alarm
  • USB Stick for WIO software
  • Excluded Ball Valve part adapter for sealing and retaining

Product short

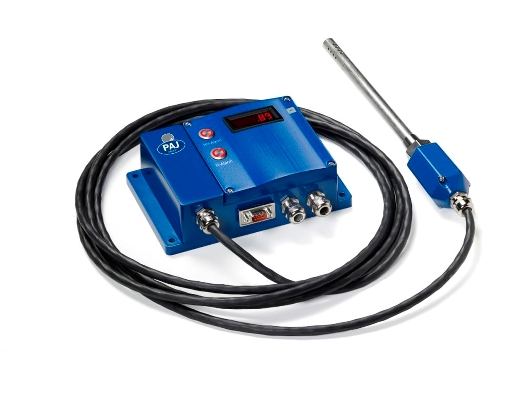

WIO 500 Integrated sensor with
CANopen Modbus user interface

Customer benefits

  • 24/7 monitoring and early warnings (allowing preventive actions)
  • Increased lifetime of engine parts, cylinders, bearings, etc.
  • Saved damages and downtime costs
  • Longer oil lifetime
  • Saved oil sample costs (and administration)
  • Potential savings on water filters, separators, etc. (only running when needed)
  • Avoided commercial costs and negative customer impact (from downtime and delays)
  • Higher accuracy than most oil sample tests and real time answers
